Ultra Quiet Piezoelectric Focused Shockwave Machine Providing Comfortable Painless Surface Treatment Experience

Customization:	Available
Type:	Rehabilitation Machine
Function:	Tissue Repair

Basic Information

Model NO.

GMS Focus shockwave B63

Theory

Rehabilitation Machine

Certification

CE, ISO13485

LCD Display

With LCD Display

Group

Adult

Product Name

Focused Shockwave Therapy Machine

Technology

Piezoelectric Shock Wave Device

Pulse Frequency

1 ~ 10 Hz

Strength Grade

1 ~ 10 Bar

Power

10 ~ 500 W

Screen

15 Inches Touch Screen

Penetration Depth

4 ~ 66 mm

Treated Handle

1 PC

Silicone Pad

7 PCS

Machine Size

42 × 40 × 115.5 Cm

Product Description

Ultra Quiet Piezoelectric Focused Shockwave Machine Providing Comfortable Painless Surface Treatment Experience

The EMIMPACTPOE is a high-end medical device utilizing state-of-the-art Integrated Piezoelectric Focused Shockwave technology. Unlike traditional radial shockwaves that dissipate at the surface, the EMIMPACTPOE targets the exact source of pain with surgical precision.

Widely recognized as "Green Therapy," this non-invasive system is the gold standard for treating musculoskeletal disorders, calcifications, and tendon injuries.

Core Technologies

The Inverse Piezoelectric Effect: Utilizes a high-tech ceramic transducer where thousands of piezoelectric crystals create powerful acoustic pressure waves via high-voltage pulses.
Geometric Focusing Technology: Employs an Anti-Hemispherical Surface Integration design to direct waves to a single focal point, ensuring skin surface energy remains low and painless while internal therapeutic impact peaks.

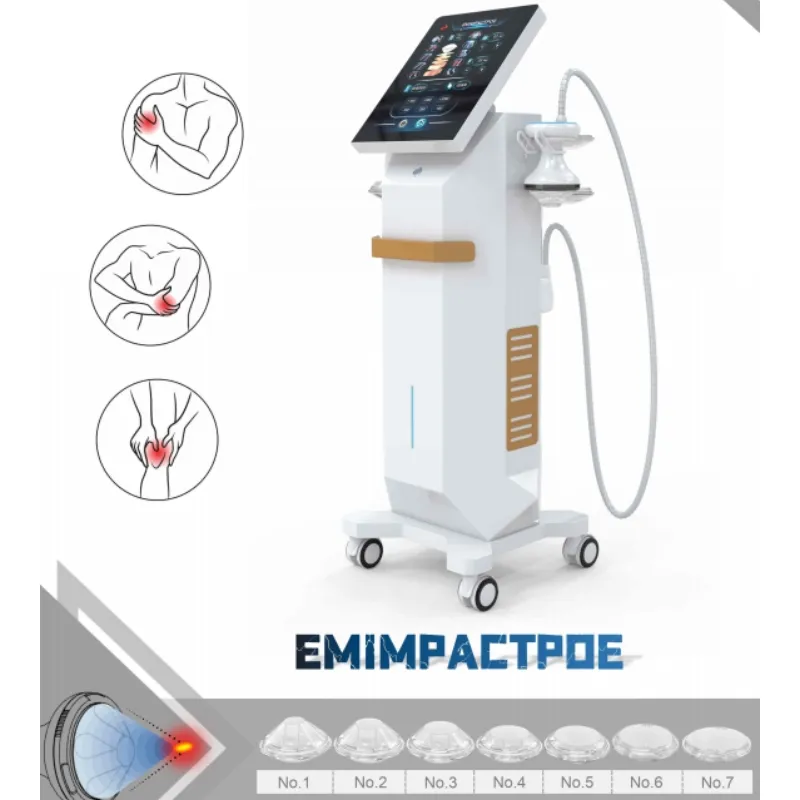

Precise Depth Control (4mm to 66mm): Includes 7 interchangeable silicone pads to shift the focal point precisely onto damaged tissue, from superficial tendons to deep joints.
Triple Biological Impact: Combines Cavitation Effect (breaking down adhesions), Metabolic Activation (stimulating healing/collagen), and Neurological Analgesia (blocking pain signals).

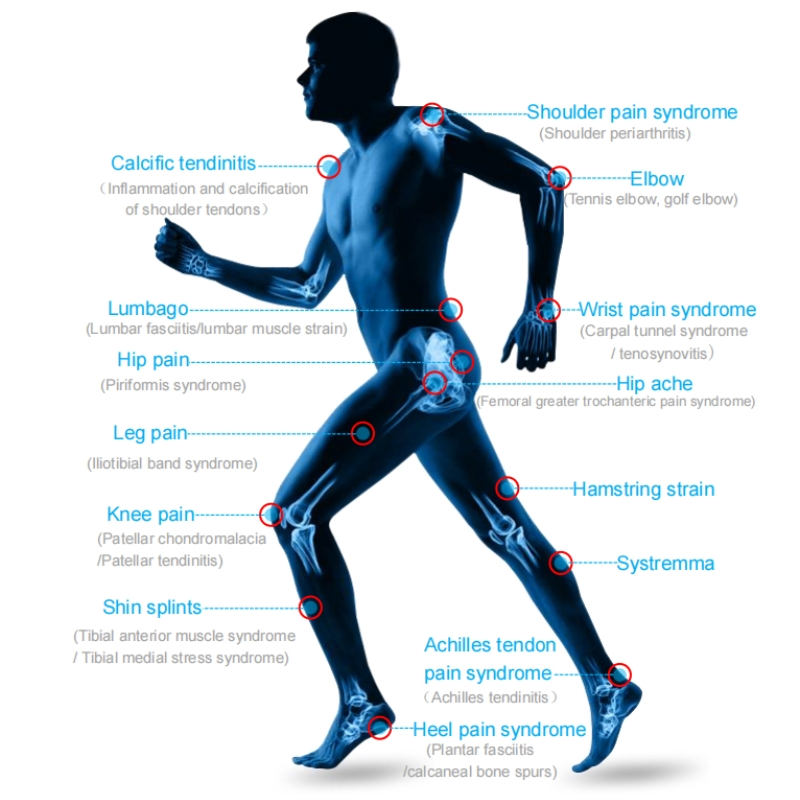

Clinical Applications

Orthopedics: Bone non-unions, arthritis, and joint stiffness.

Sports Medicine: Tennis Elbow, Jumper's Knee, Achilles Tendonitis, and Plantar Fasciitis.

Rehabilitation: Muscle contractures and chronic myofascial pain syndrome.

Calcification: Dissolving calcific tendonitis without surgery.

Technical Parameters

Parameter	Specification
Technology	Piezowave Focus Shockwave
Pulse Frequency	1 ~ 10 Hz
Strength Grade	1 ~ 10 Bar
Power	10 ~ 500 W
Screen	15 Inches Touch Screen
Penetration Depth	4 ~ 66 mm
Treated Handle	1 pc
Silicone Pad	7 pcs
Machine Size	42 × 40 × 115.5 cm

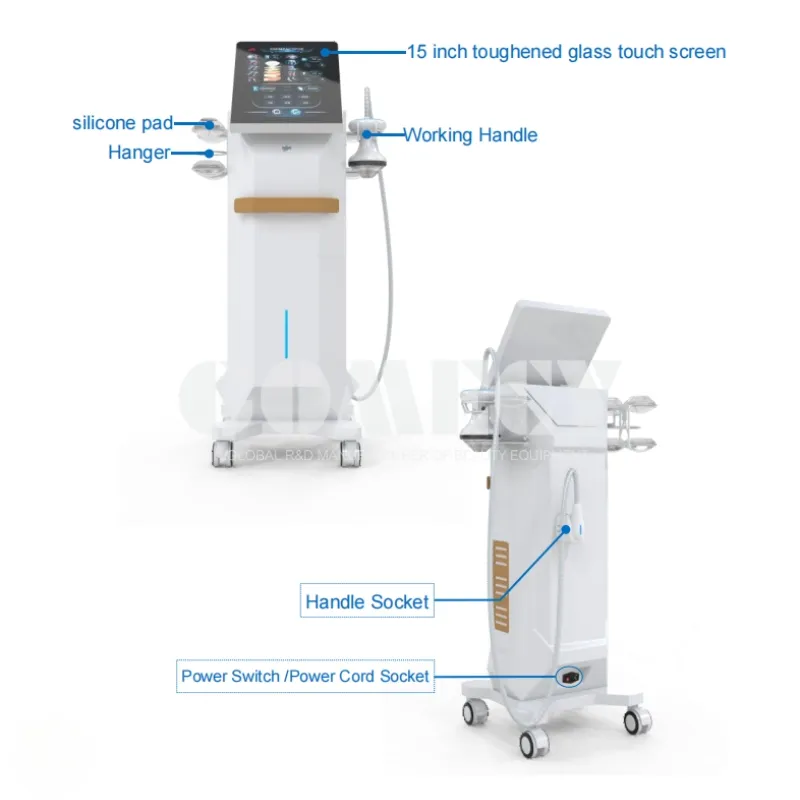

Product Features & Details

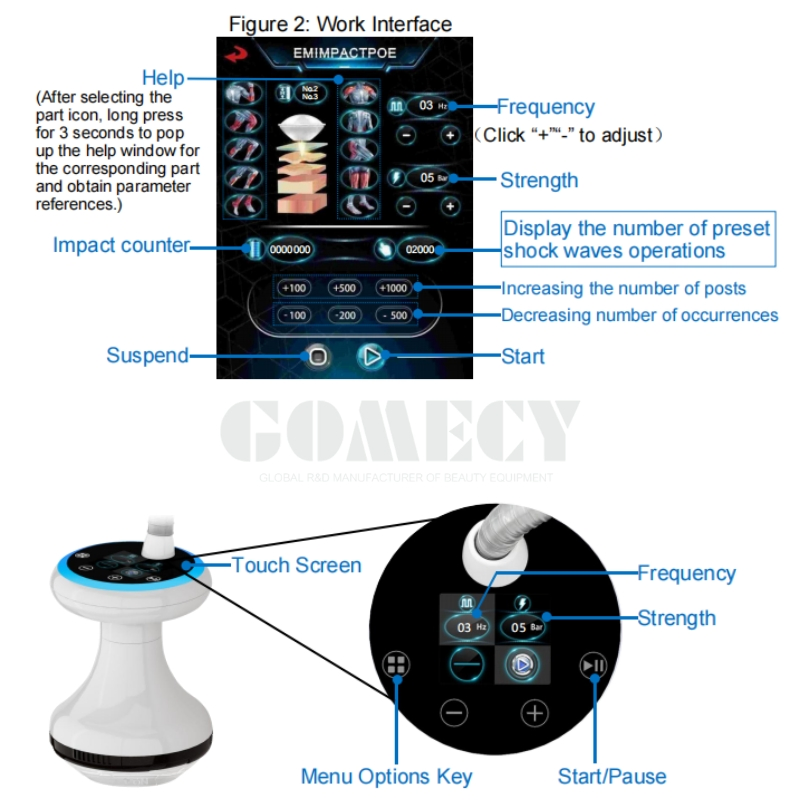

Dual-Screen Interaction: 15-inch main console paired with a 1.8-inch screen on the handpiece for real-time adjustments.
Ultra-Quiet Performance: Piezoelectric technology creates a calm clinical environment compared to noisy pneumatic systems.
No Vibration Kickback: Ergonomic handpiece protects the therapist's joints by absorbing internal recoil.
Zero-Pain Surface Contact: Energy only peaks at the focus, significantly increasing patient satisfaction.

Treatment Guidelines

Pre & Post Care

Pre-Treatment: Use ultrasound or palpation to locate trigger points. Apply coupling gel to ensure air-free wave transmission.

Post-Treatment: Relative rest for 48 hours; increase water intake to assist the lymphatic system.

Contraindications

Do NOT use in cases of: Pregnancy (abdominal/pelvic), Malignant tumors, Blood disorders/Anticoagulants, Children with open growth plates, or Acute infections.

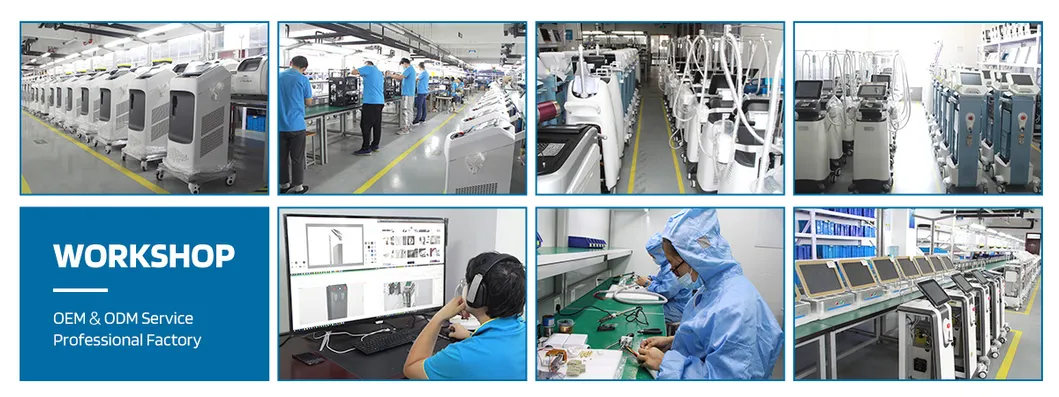

Professional Production

Frequently Asked Questions

Q: Is focused shockwave better than radial shockwave? A: They serve different purposes. Radial is great for large muscle groups. However, Focused (Piezoelectric) is vastly superior for deep tissue, chronic calcifications, and bone-related issues because it concentrates energy on the problem spot rather than spreading it on the skin.

Q: How many sessions are typically required? A: Most patients see significant improvement after 3 to 5 sessions, spaced about a week apart.

Q: Does the machine require expensive maintenance? A: No. The piezoelectric source has an incredibly long lifespan. The only consumables are the coupling gel and the silicone pads.

Q: Is it easy for a new therapist to learn? A: Yes. With our intuitive 15-inch touch interface and pre-set clinical protocols, training is fast and straightforward.

Q: Is the treatment painful for the patient? A: Because the energy only peaks at the internal focal point, patients rarely feel "stinging" on the skin surface, resulting in a nearly painless experience compared to other shockwave types.

Q: What is the maximum depth the machine can reach? A: The machine offers a penetration depth ranging from 4mm up to 66mm, controlled by 7 interchangeable silicone pads.
