EMIMPACTPOE is a high-end medical device utilizing state-of-the-art Integrated Piezoelectric Focused Shockwave technology. Unlike traditional radial shockwaves that dissipate at the surface, this system targets the exact source of pain with surgical precision.

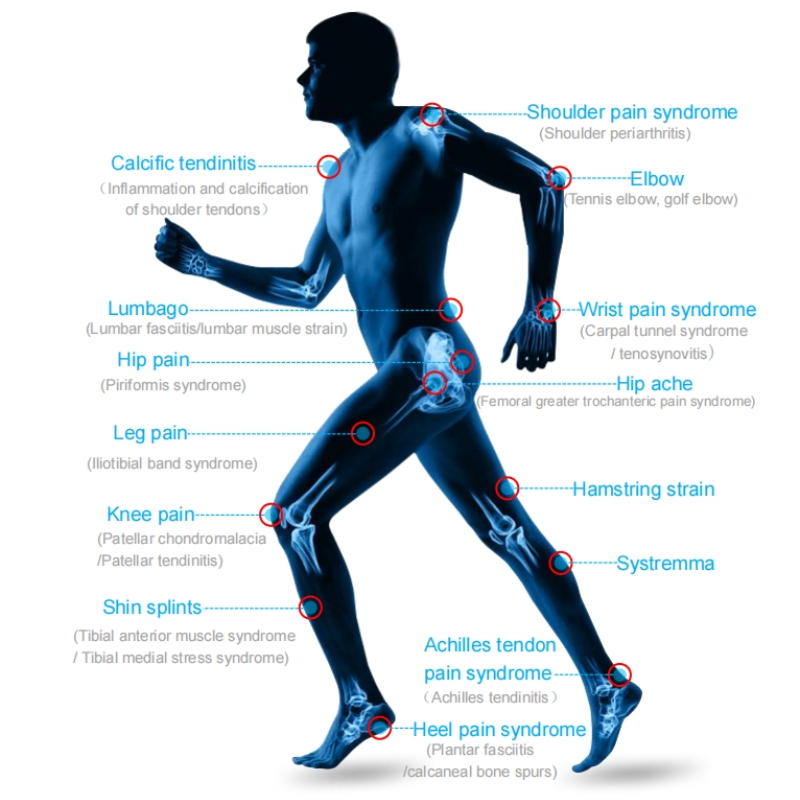

Widely recognized as "Green Therapy," this non-invasive system is the gold standard for treating musculoskeletal disorders, calcifications, and tendon injuries.
Inverse Piezoelectric Effect: Utilizes a high-tech ceramic transducer. High-voltage pulses cause piezoelectric crystals to expand and contract rapidly, creating powerful acoustic pressure waves.
Geometric Focusing: Uses Anti-Hemispherical Surface Integration. Energy is directed to a single focal point, ensuring a painless experience at the skin while delivering maximum impact to deep lesions.

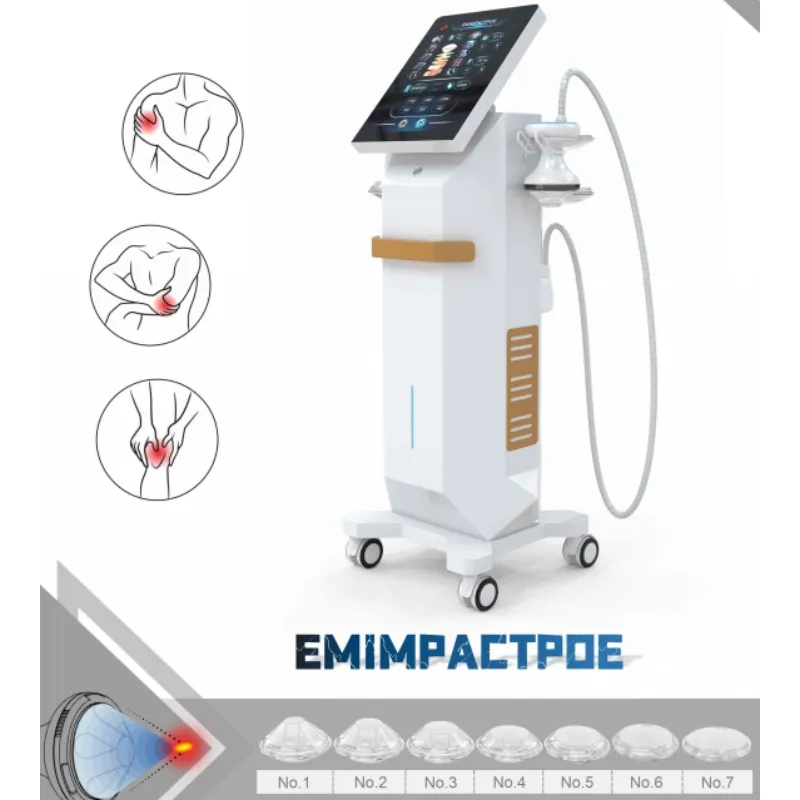

Precise Depth Control: Includes 7 interchangeable silicone pads to adjust the focal point from 4mm to 66mm, tailoring the treatment to specific patient anatomy.
| Parameter | Specification |
|---|---|
| Technology | Piezowave Focus Shockwave |
| Pulse Frequency | 1 ~ 10 Hz |
| Strength Grade | 1 ~ 10 Bar |
| Power | 10 ~ 500 W |

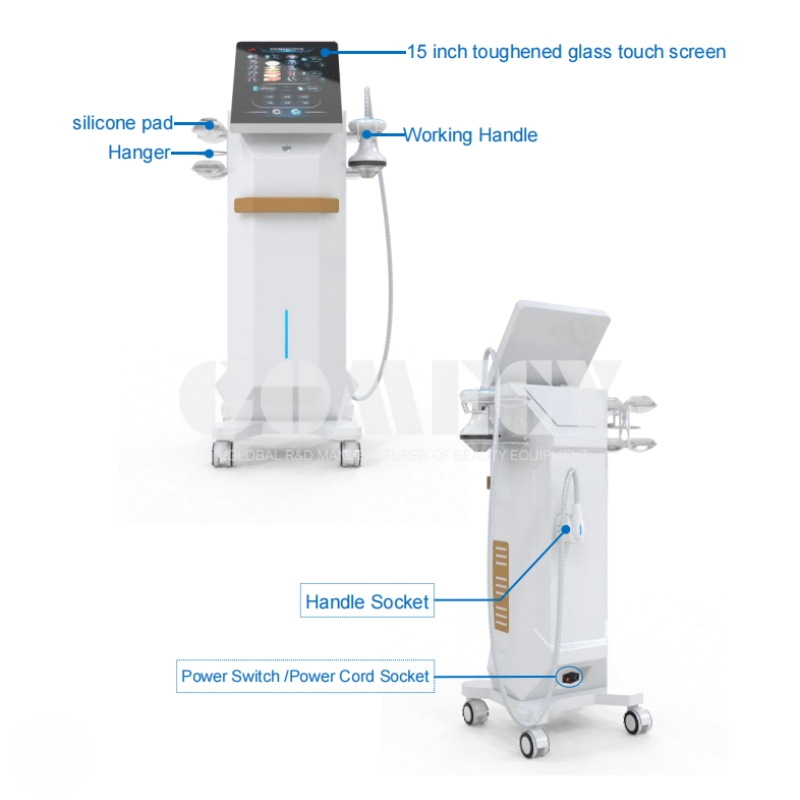

| Screen | 15 Inches Touch Screen |
| Penetration Depth | 4 ~ 66 mm |
| Machine Size | 42 × 40 × 115.5 cm |

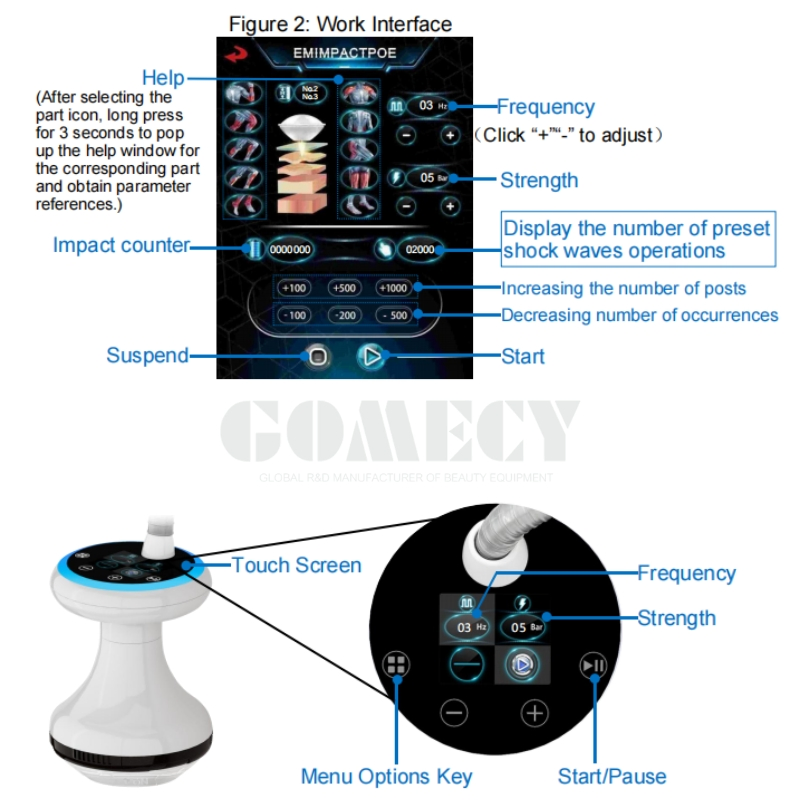

Dual-Screen Interaction: 15-inch main console paired with a 1.8-inch screen on the handpiece for real-time adjustments.
Ultra-Quiet Performance: Piezoelectric technology operates whisper-quiet compared to pneumatic systems.
Zero Vibration Kickback: Ergonomic handpiece designed to protect the therapist's joints during long sessions.
Pre-Treatment: Use diagnostic mapping (ultrasound/palpation) and apply liberal coupling gel to ensure wave transmission.
Post-Treatment: Ensure relative rest for 48 hours and maintain high hydration to flush metabolic waste.
