Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
1 / 5
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape
Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape

Nitto 903 Single-Sided Polytetrafluoroethylene (PTFE) Film-Based Tape, Silicone High Temperature Resistant Tape

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.Nitto 903
WaterproofYes
ApplicationPlastic, Metal, Rubber, Glass, Ceramic
AdhesiveSilica Gel
Base MaterialPTFE
TypeSingle Sided Tape
Insulation ClassClass H
Temperature Range-60~200°C
Tensile Strength55/93/160/210 N/19mm
HS Code3919109900
D

Product Overview

Nitto 903 is a single-sided treated polytetrafluoroethylene (PTFE) film-based tape coated with a silicone adhesive with excellent heat resistance. In addition to excellent electrical properties, the tape also has many excellent properties, such as heat resistance, chemical resistance, low coefficient of friction and non-stickiness.

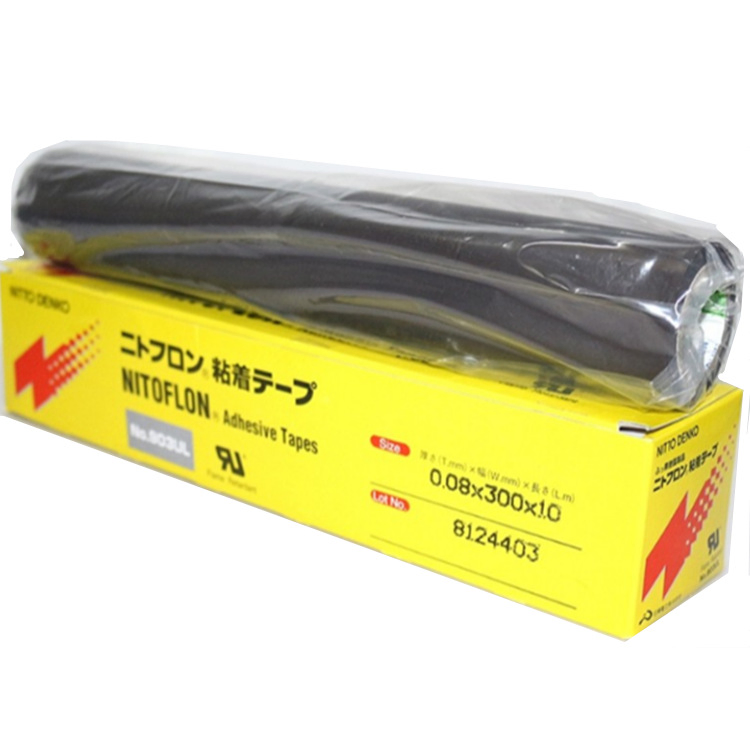

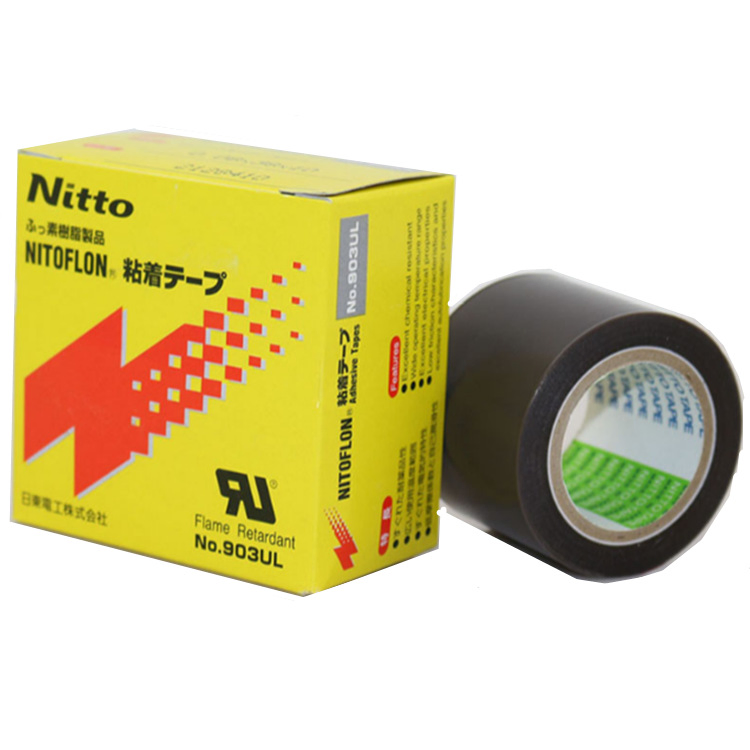

Nitto 903 PTFE Tape View 1

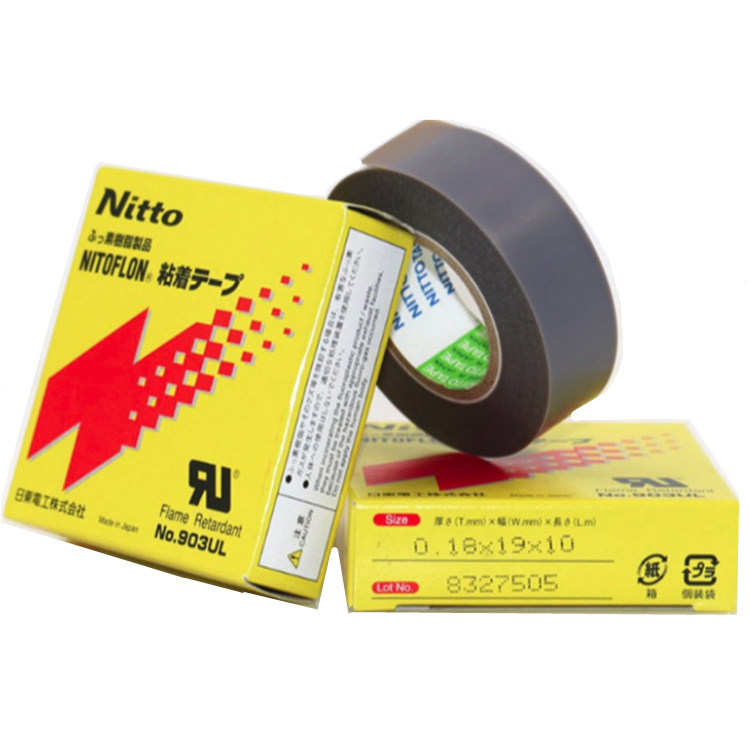

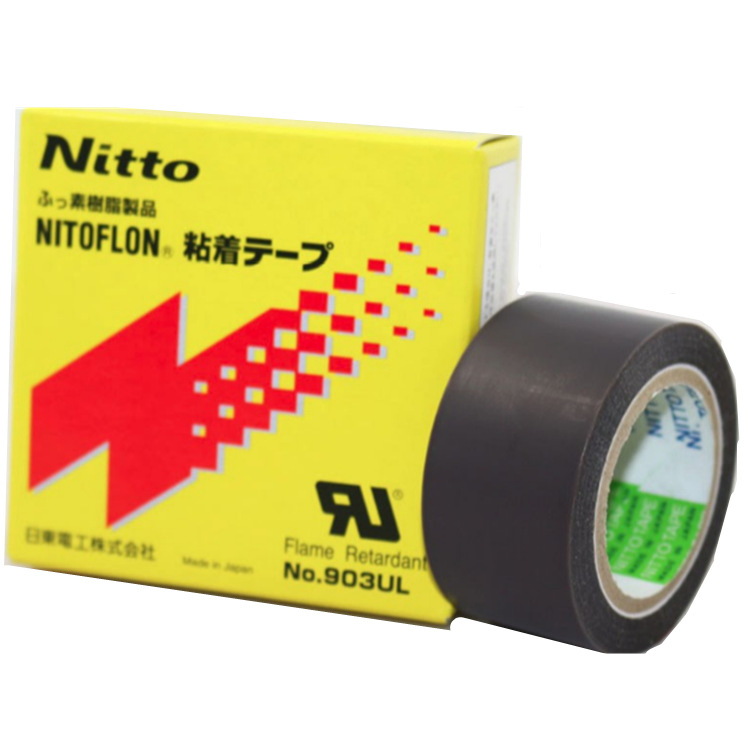

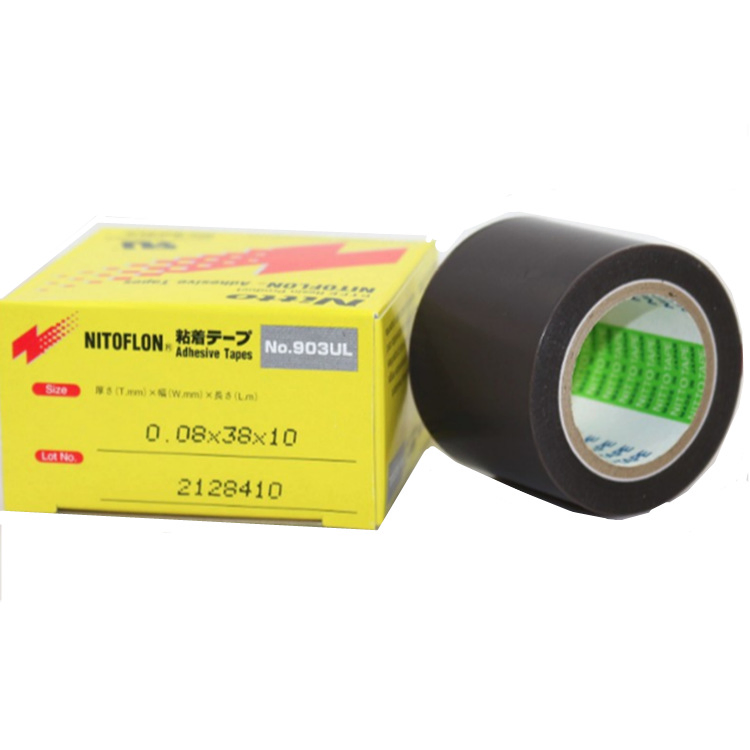

Nitto 903 PTFE Tape View 2
★

Key Features

Environment-friendly and complies with Notification No.20 of the Ministry of Health, Labor and Welfare.
Superior in mold-releasing and sliding property.
Uses the Class H insulating material for high-end electrical needs.
Superior flame resistance and low friction coefficient.
Resistant to heat, weather, chemical, and water (water-shedding).
Easy to adhere, wind, band and seal like regular adhesive tapes.
T

Technical Parameters

Property Specification Details
ColorGray
Thickness [mm]0.08 / 0.13 / 0.18 / 0.23
Maximum Width [mm]450
Standard Length [m]10
Breakdown Voltage [Kv]8 / 11 / 14 / 15
A

Primary Applications

Heat-resistant masking for industrial processing.
High-temperature heat-sealing applications.
Heat-resistant electrical insulation for motors and cables.
?

Frequently Asked Questions

What are the main advantages of Nitto 903 PTFE tape?
It offers a unique combination of heat resistance (-60°C to 200°C), excellent electrical insulation (Class H), chemical resistance, and an extremely low coefficient of friction for non-stick performance.
What thicknesses are available for this tape?
The tape comes in four standard thicknesses: 0.08mm, 0.13mm, 0.18mm, and 0.23mm to suit different mechanical and insulation requirements.
Can it be used for electrical insulation in high-temperature environments?
Yes, it is specifically designed as a Class H electrical insulating tape, making it ideal for high-temperature electrical applications and masking.
Is the tape resistant to chemicals and water?
Absolutely. The PTFE base material provides excellent resistance to chemicals, weather, and water-shedding properties.
What is the maximum width available for customization?
The maximum production width for Nitto 903 is 450mm, which can be slit into various widths according to specific application needs.
Does this tape comply with environmental safety standards?
Yes, it is environment-friendly and complies with relevant health and safety notifications such as those from the Ministry of Health, Labor and Welfare.
