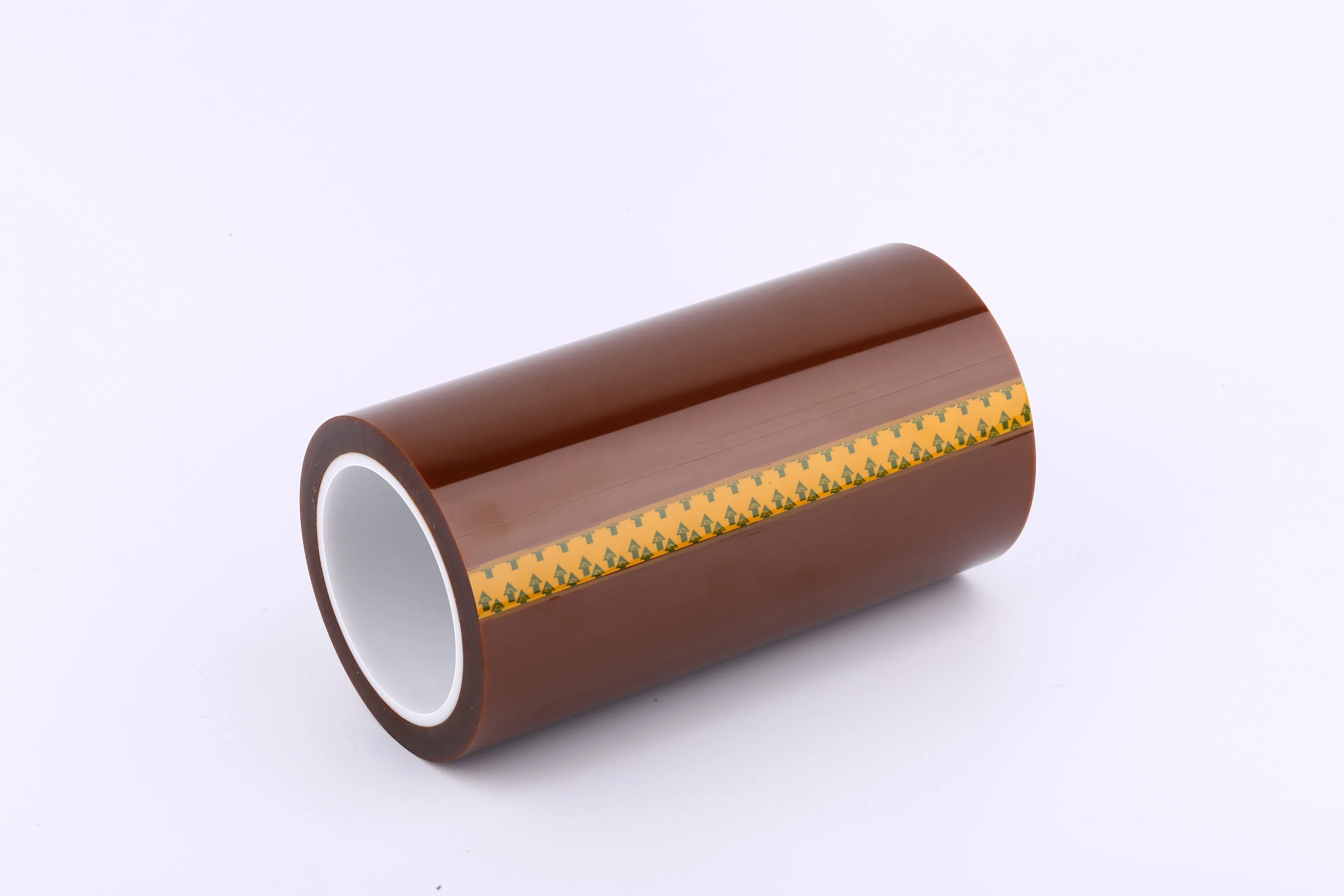

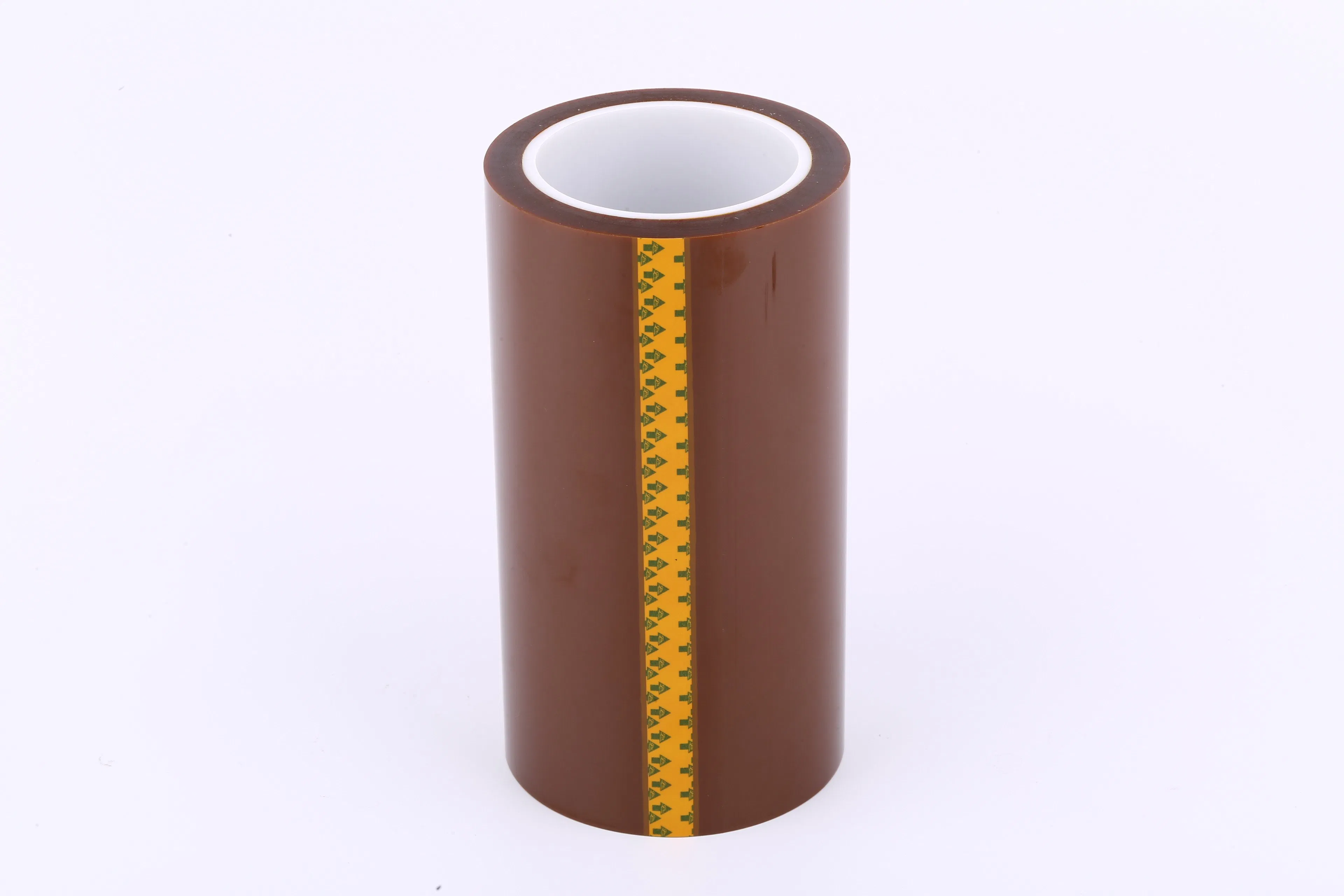

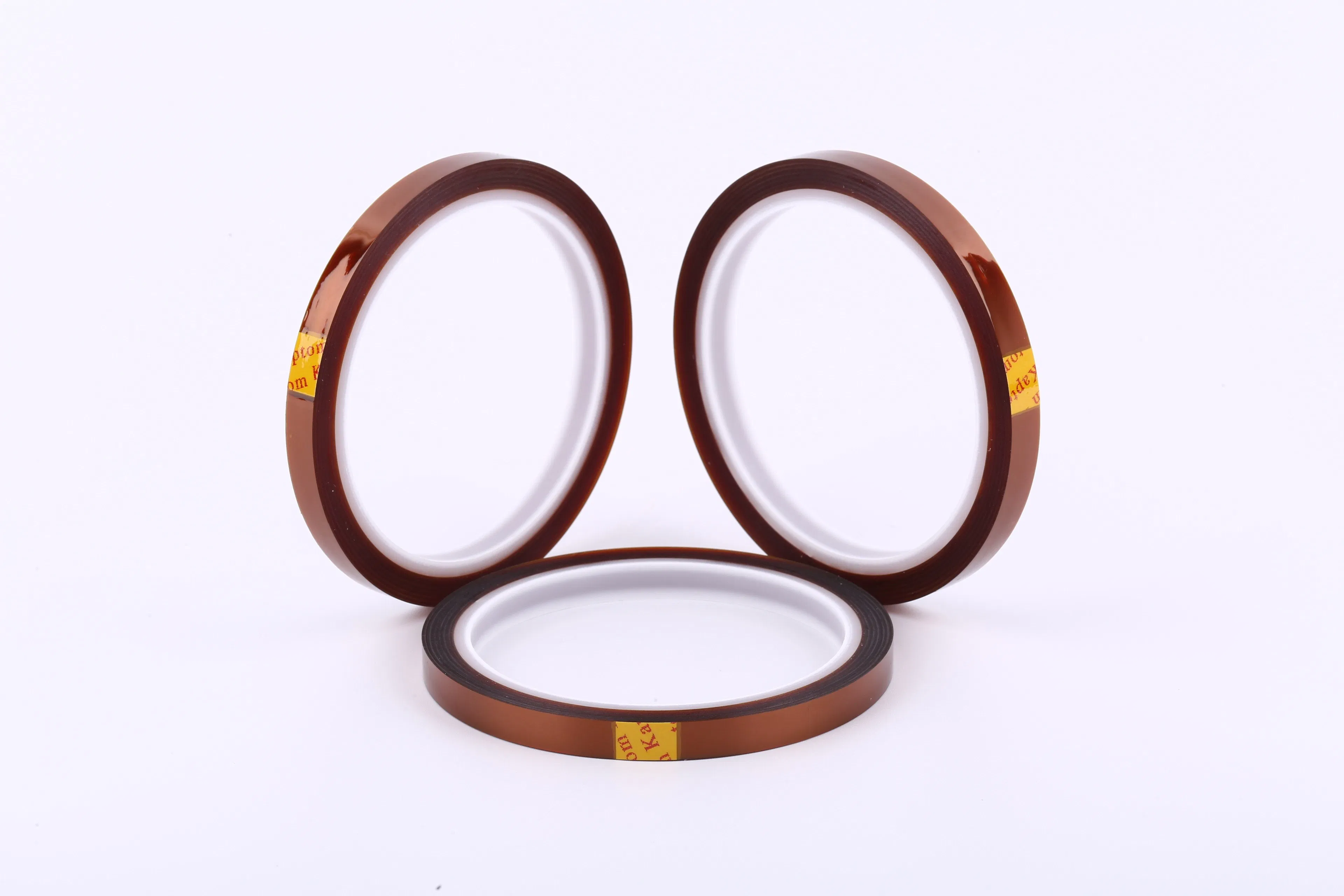

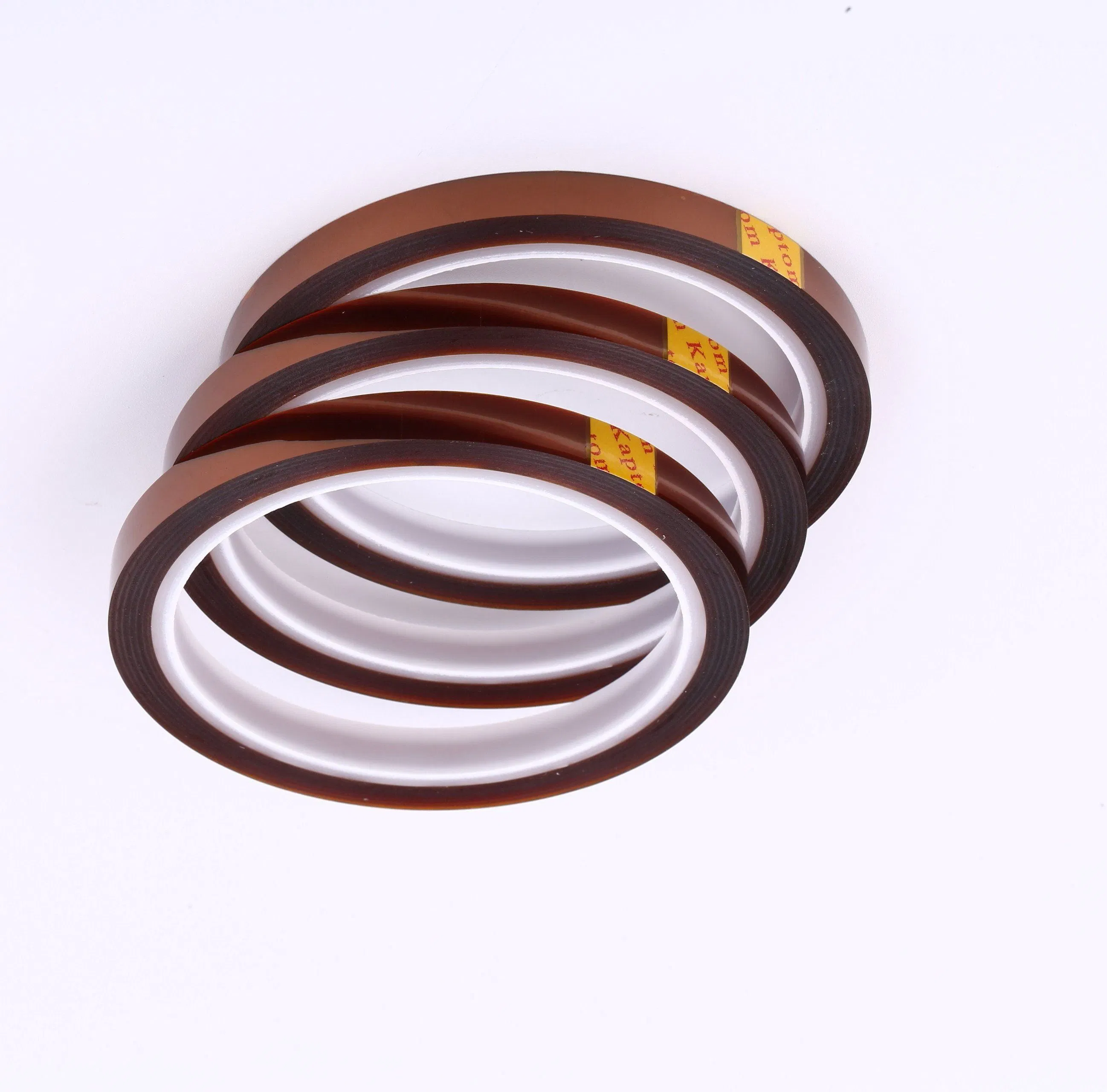

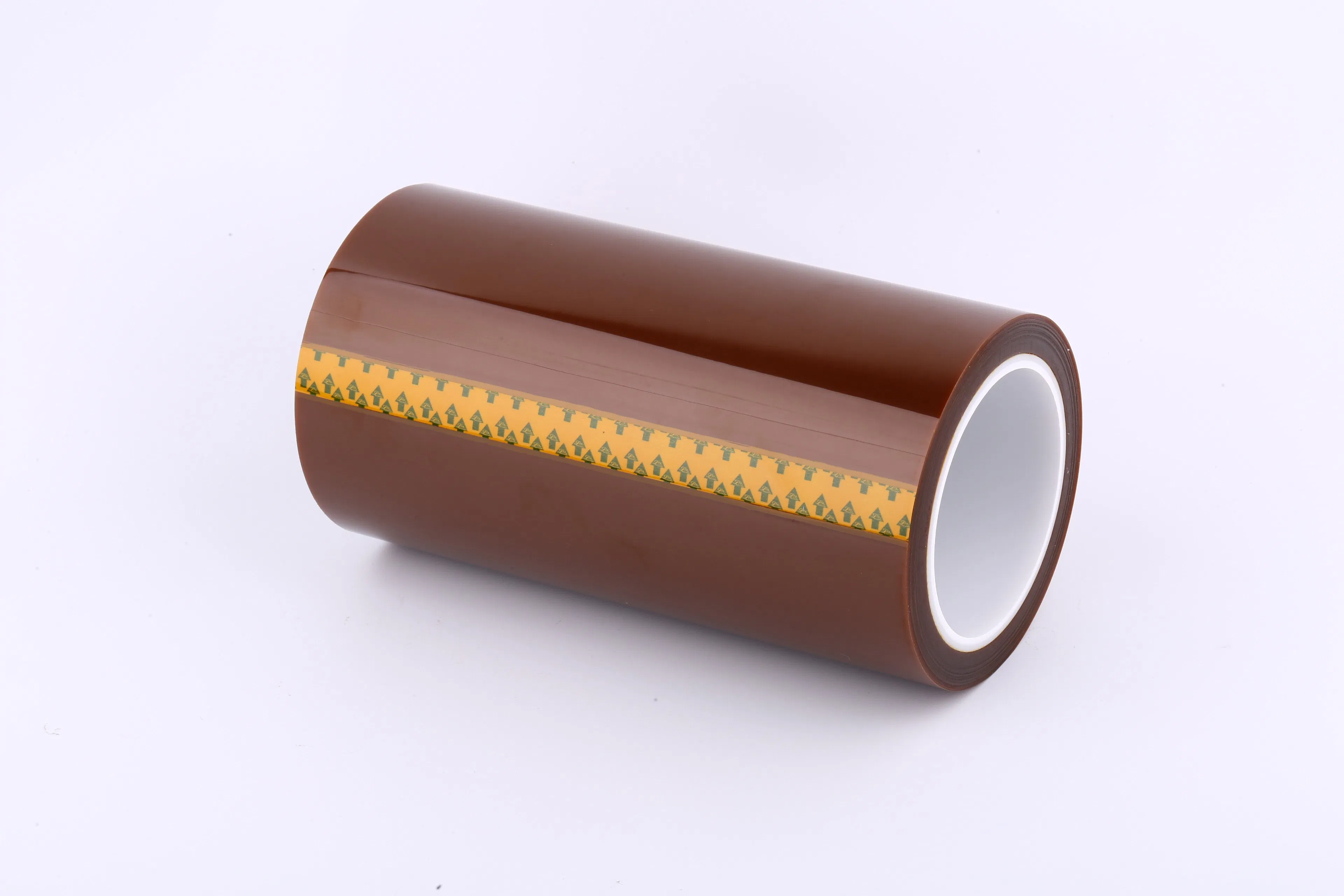

Polyimide tape, also known as Kaptons tape, Goldfinger. The tape uses polyimide film as the substrate, coated with single-sided high-performance silicone pressure-sensitive adhesive. It features excellent high-temperature resistance and solvent resistance, with coating precision reaching ±2.5um. It is easy for punching and die-cutting processing.

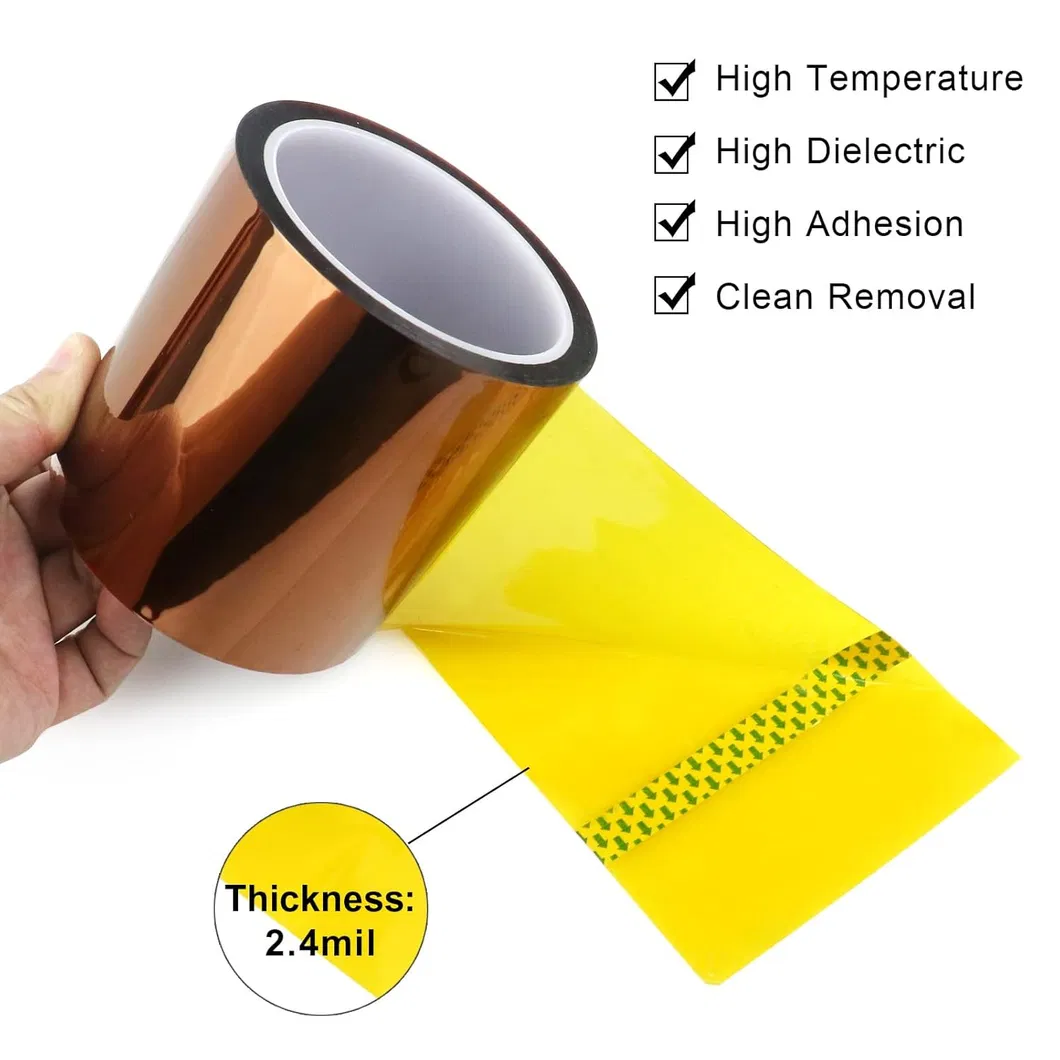

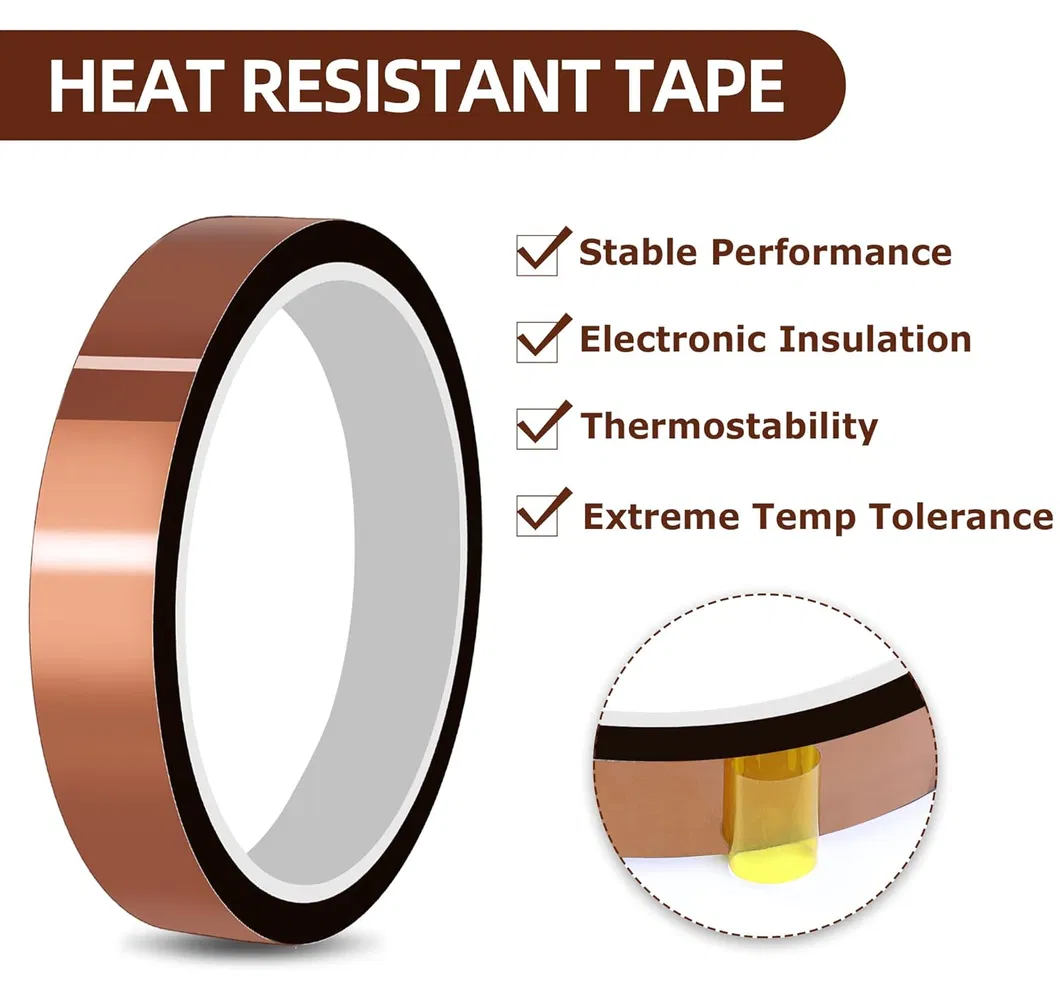

Key Features:
1. Polyimide film carrier with high temperature resistance and good insulation.
2. Silicone pressure-sensitive adhesive, heat resistant up to 280ºC (long term) - 300ºC (short term).
3. Surface protection without adhesive residue.
4. Effective anti-static properties (ESD PI tape available).
5. Long-term durability and clean removal.
| Items | Unit | 12.5μm | 25μm | 50μm |
|---|---|---|---|---|
| Thickness | µm | 10.2-15.2 | 23-27 | 48-52 |
| Tensile strength | Mpa | ≥138 | ≥165 | ≥165 |
| Elongation | % | ≥35 | ≥40 | ≥50 |
| Electric strength | MV/m | ≥120 | ≥235 | ≥195 |
1. H-class motor and transformer coil insulation for electrical equipment industries.
2. High-temperature bonding insulation for RTD protection, capacitors, and wire tangles.
3. PCB manufacturing: Electronic protection paste, SMT temperature protection, and PCB board finger protection.
4. Masking surface protection for hot surfaces, metal painting, and sandblasting.
