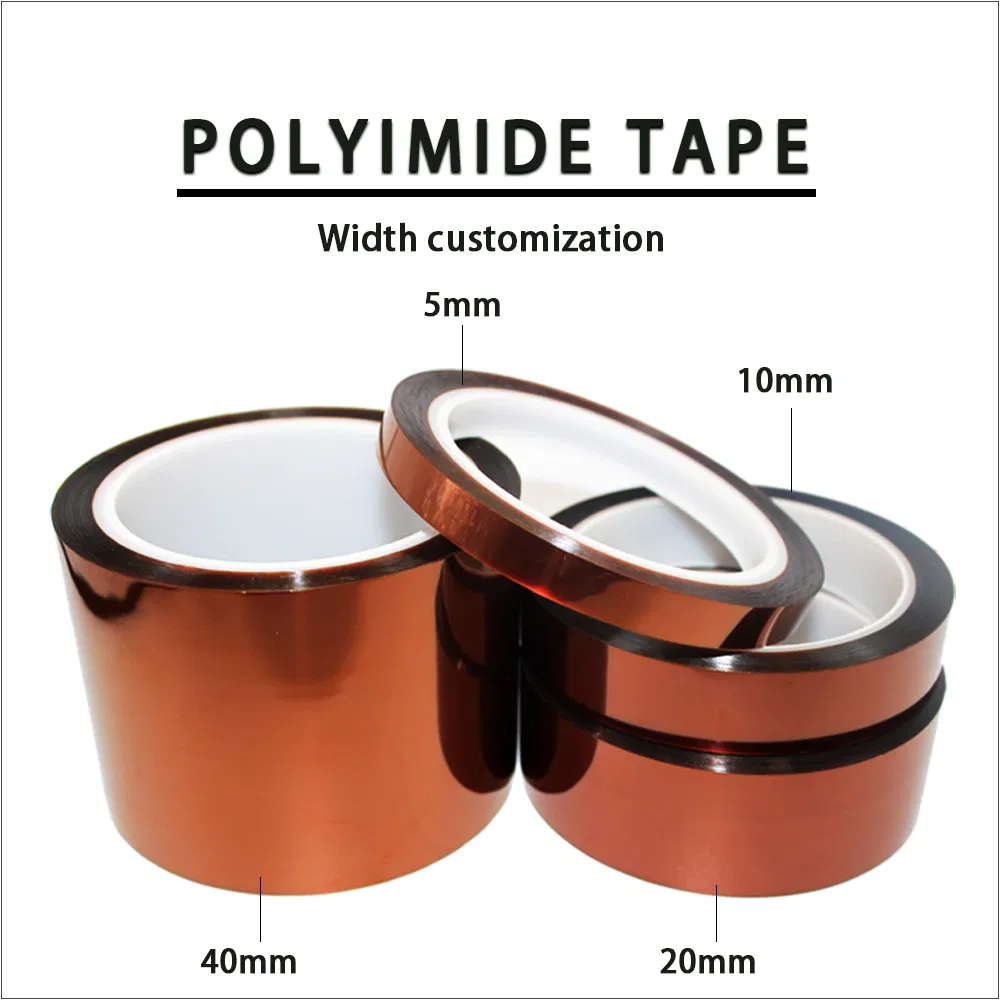

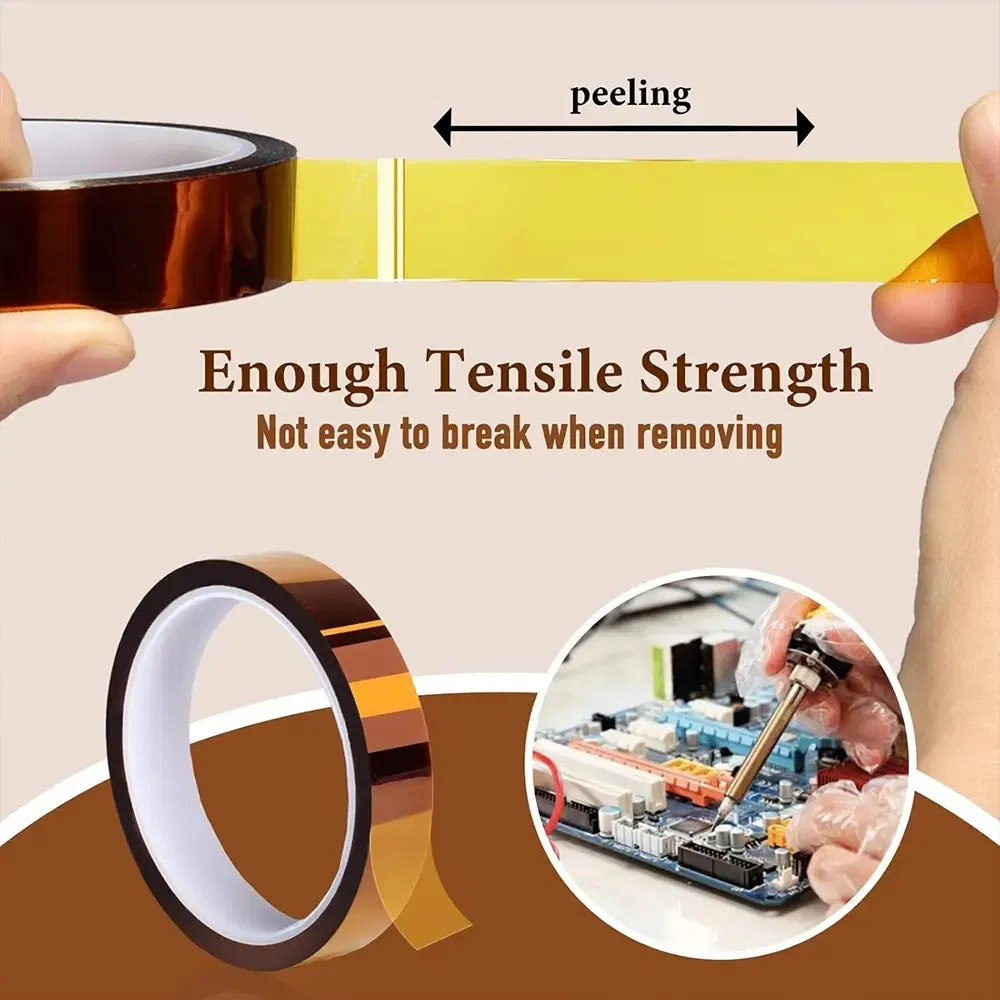

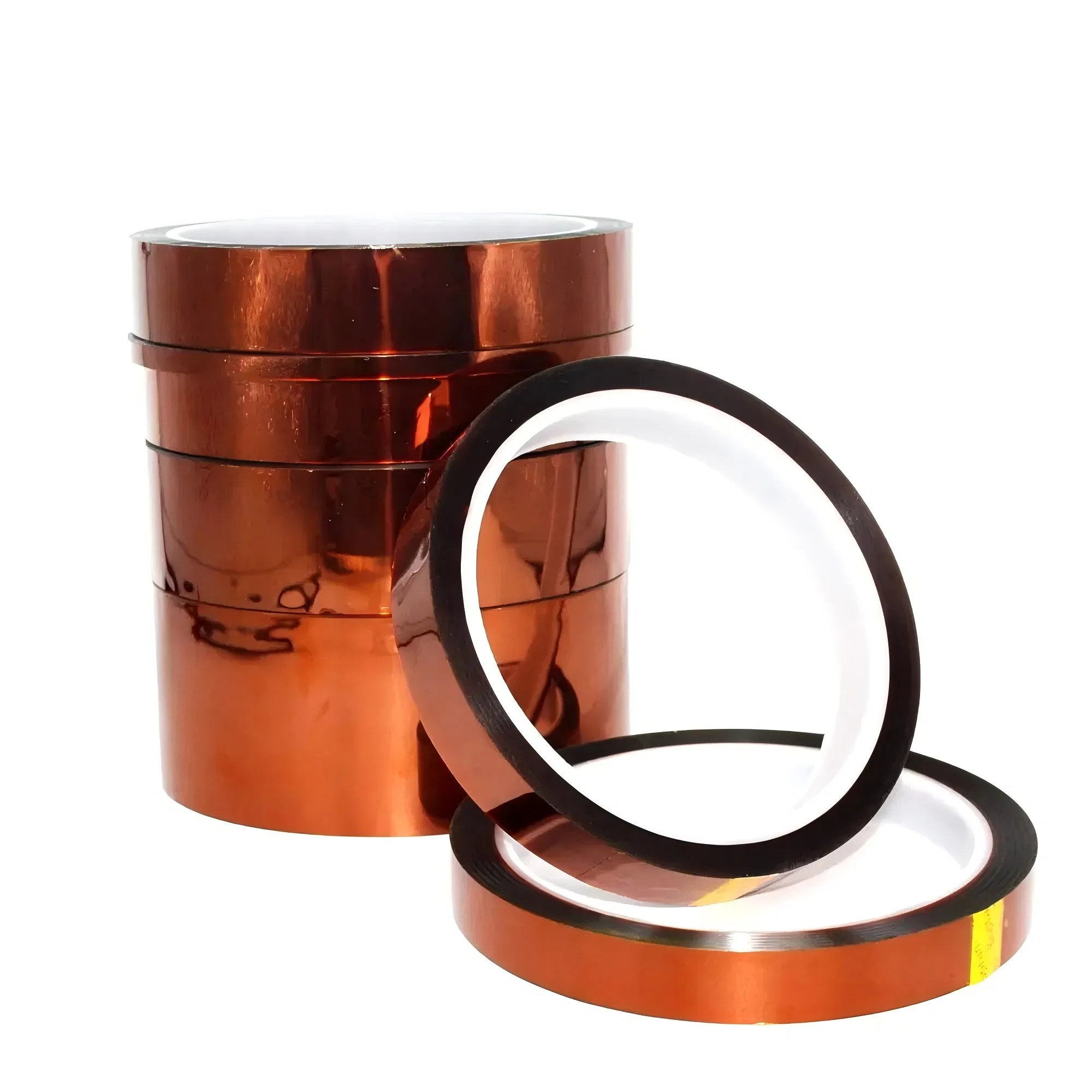

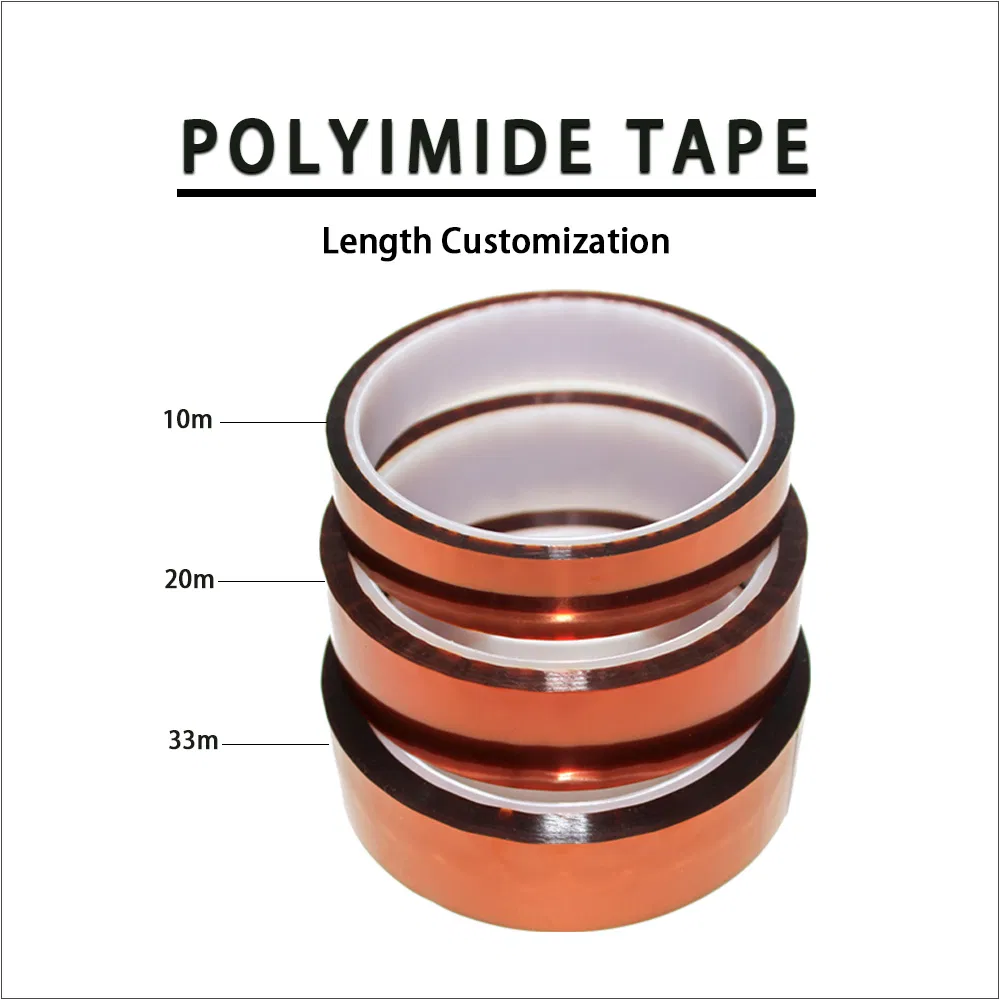

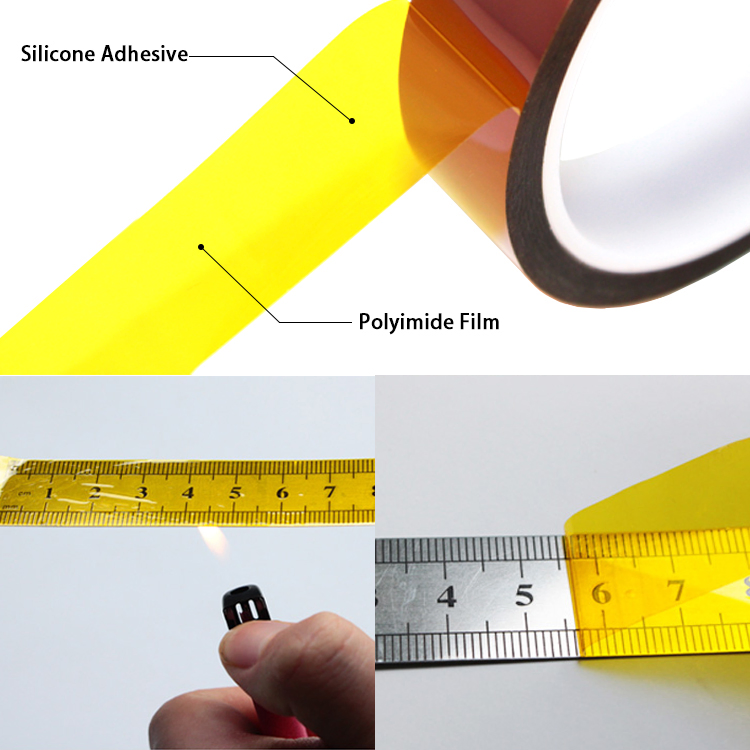

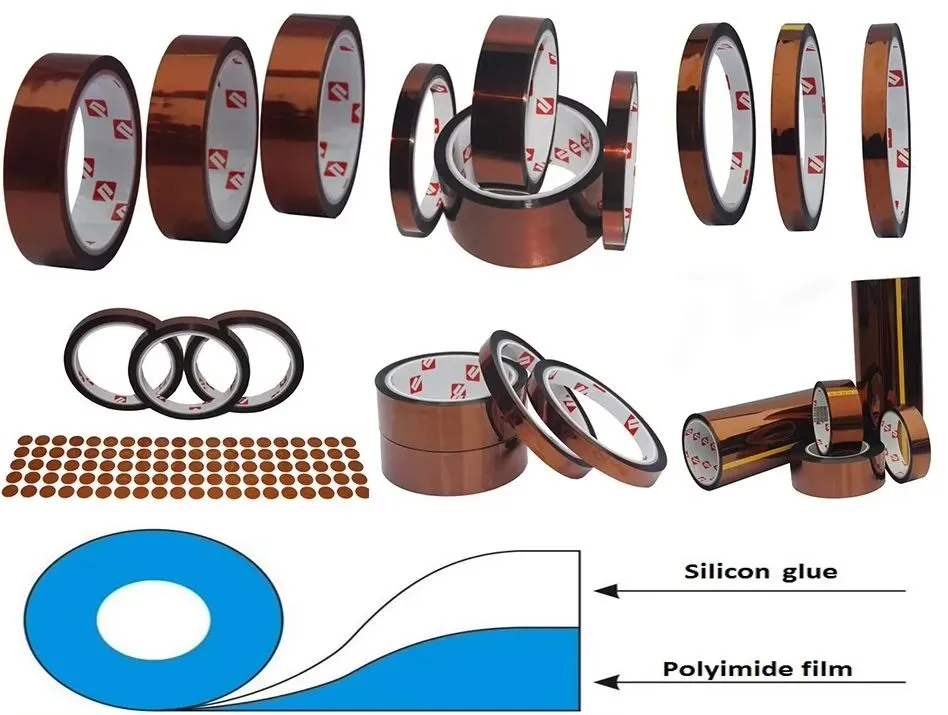

Polyimide film adhesive tape uses polyimide film as a substrate, coated with high-performance silicone pressure-sensitive adhesive. It features excellent shear resistance, heat resistance, chemical stability, radiation resistance, and solvent resistance.
| Based Material | Polyimide Film |
| Adhesive | Silicone Adhesive |
| Heat Resistance | Short term 300ºC, Long term 260ºC |
| Insulation Strength | 150-200 MV/m |
| Features | High temperature resistance, good insulation, no residue, anti-static, durable. |
| Product Code | P0104 | P0106 | P0107 | P0108 | P0106E |
|---|---|---|---|---|---|

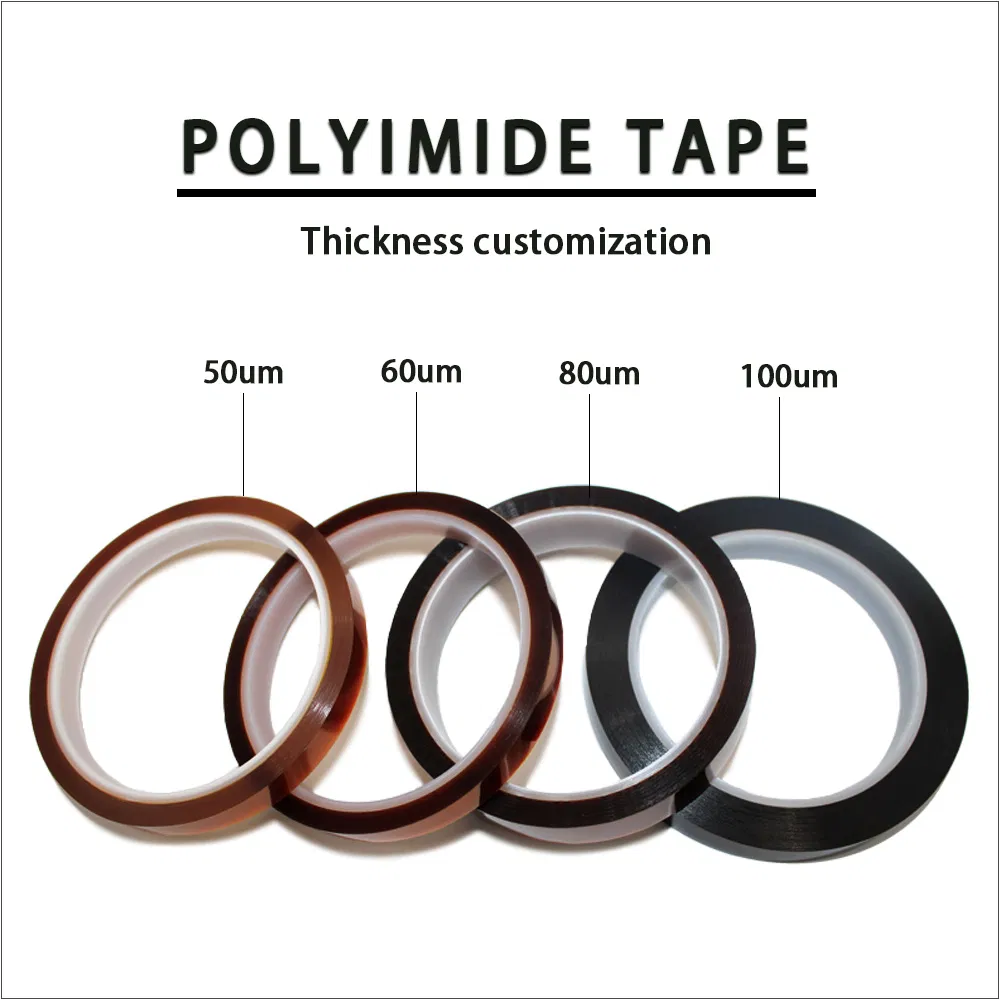

| Backing thickness | 0.025 | 0.025 | 0.025 | 0.05 | 0.025 |
| Total Thickness | 0.04 | 0.06 | 0.07 | 0.08 | 0.06 |
| Adhesive | Silicone | Silicone | Silicone | Silicone | Silicone |
| Adhesion (N/25MM) | 6 | 6 | 6 | 6 | 7 |
| Breakdown Voltage (KV) | 4.5 | 4.5 | 4.5 | 5 | 4.5 |

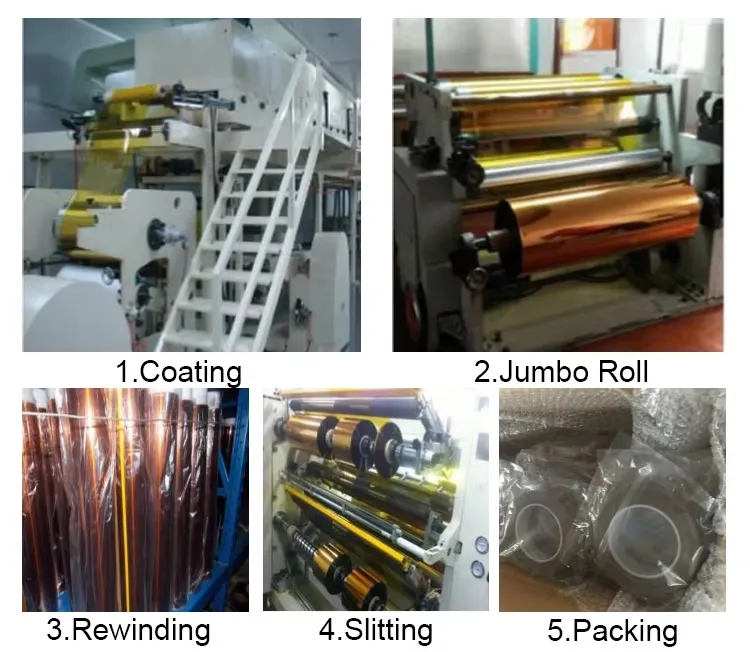

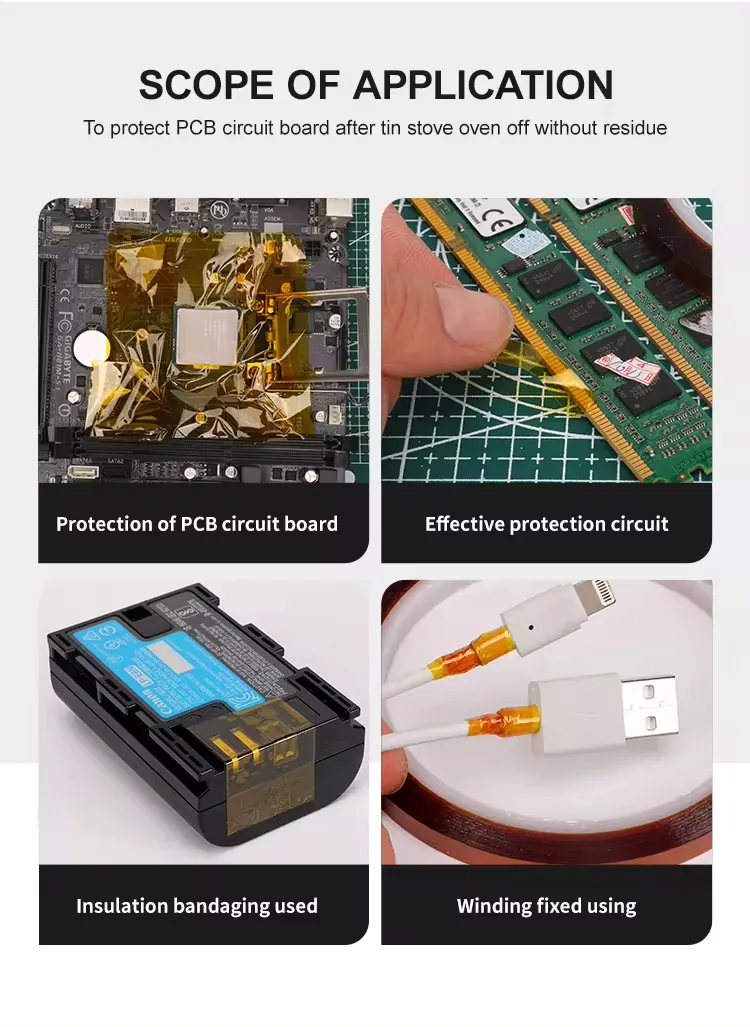

Specialized in manufacturing high-grade polyimide film (PI film) products, we hold certifications for ISO9001, ISO14001, and ISO45001. Our main products include bidirectional stretch polyimide film (BOPI) with thickness options from 12.5μm to 50μm. These products are widely used in LED lighting, flexible circuit boards (FPC), power batteries, and high-temperature painting shielding.
